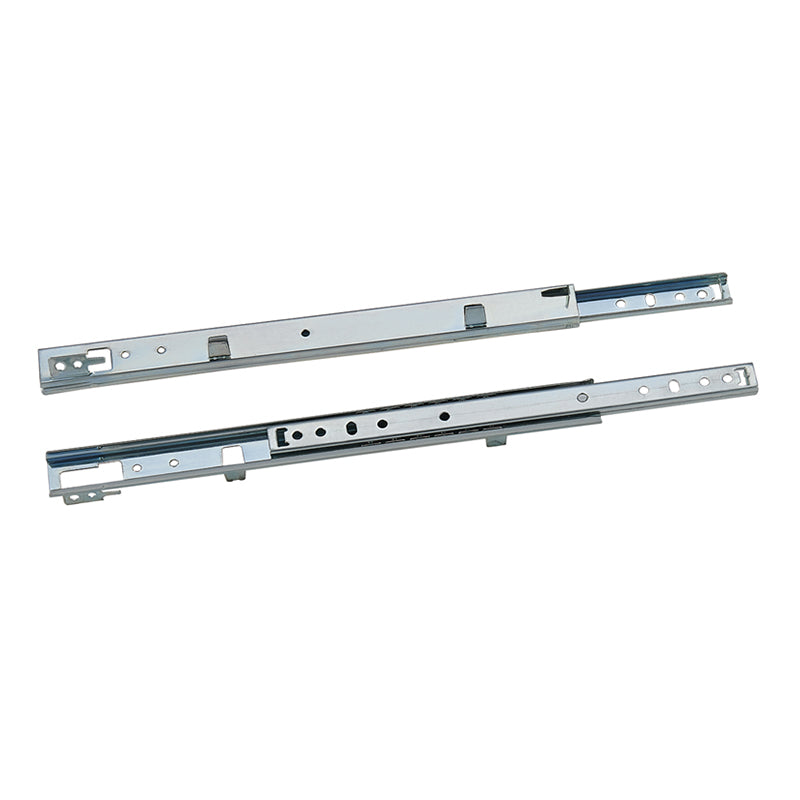

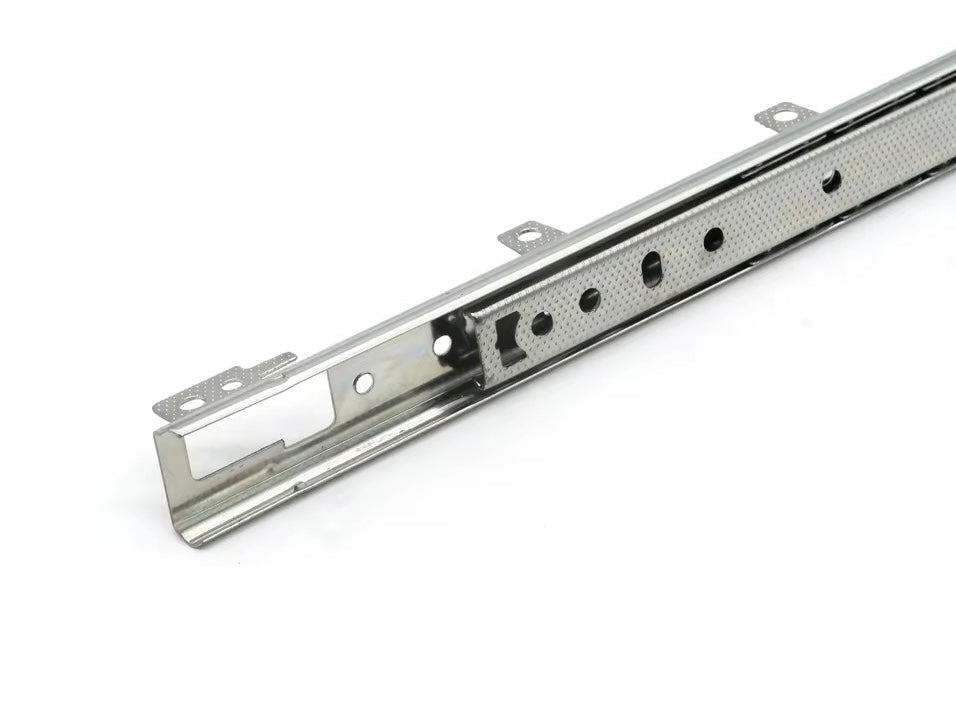

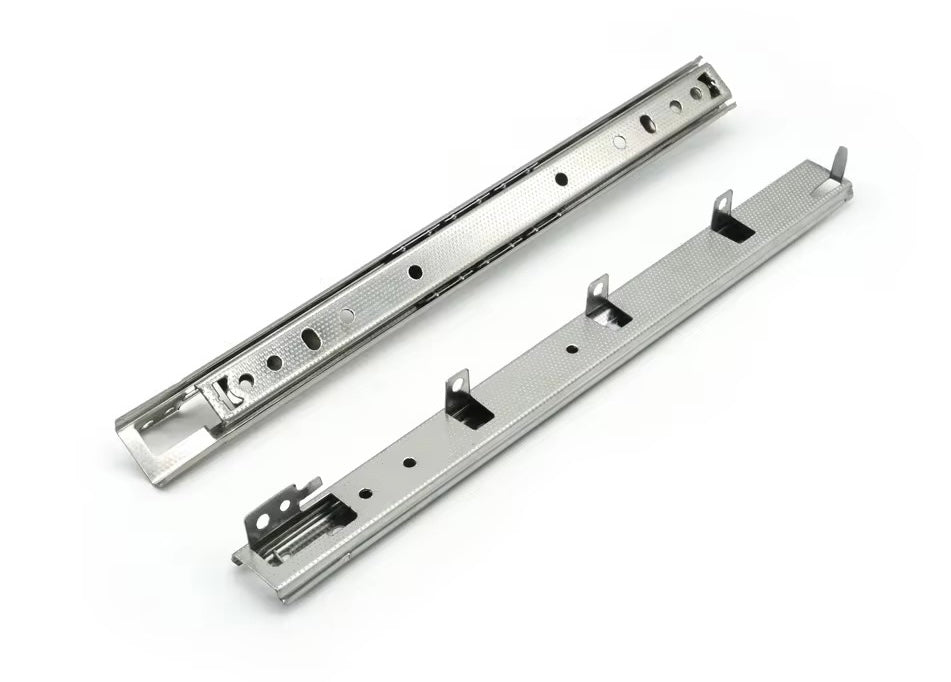

27MM Ball Bearing Slide, Swan Type, 3/4 Drawout
$0.00
customers are viewing this product
Description: Hook type drawer slide, SWAN type, two-way pull-out, 27mm width
Material: Cold rolled steel.

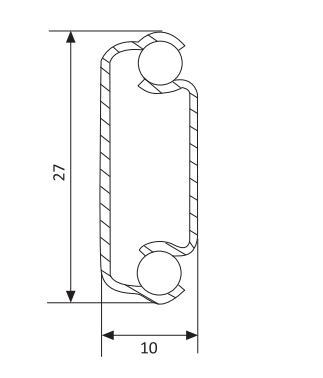

Side Width: 27 mm
Mounting Height: 10 ± 0.2 mm
Finishing: Zinc Plated, Black Coating.
Length Range: 12", 14”, 16”" (300 mm /350mm/400mm) or size to be made according to customer’s requirement.
Applications: For steel Cabinet, tool work bench, etc.
Features:
1. Slide is designed for two-way pull-out and is non-separable.
2. Slide is equipped with precision-ground steel balls, ensuring smooth, unobstructed, and silent operation.
3. Circle testing: pass 50,000 times of operating.
